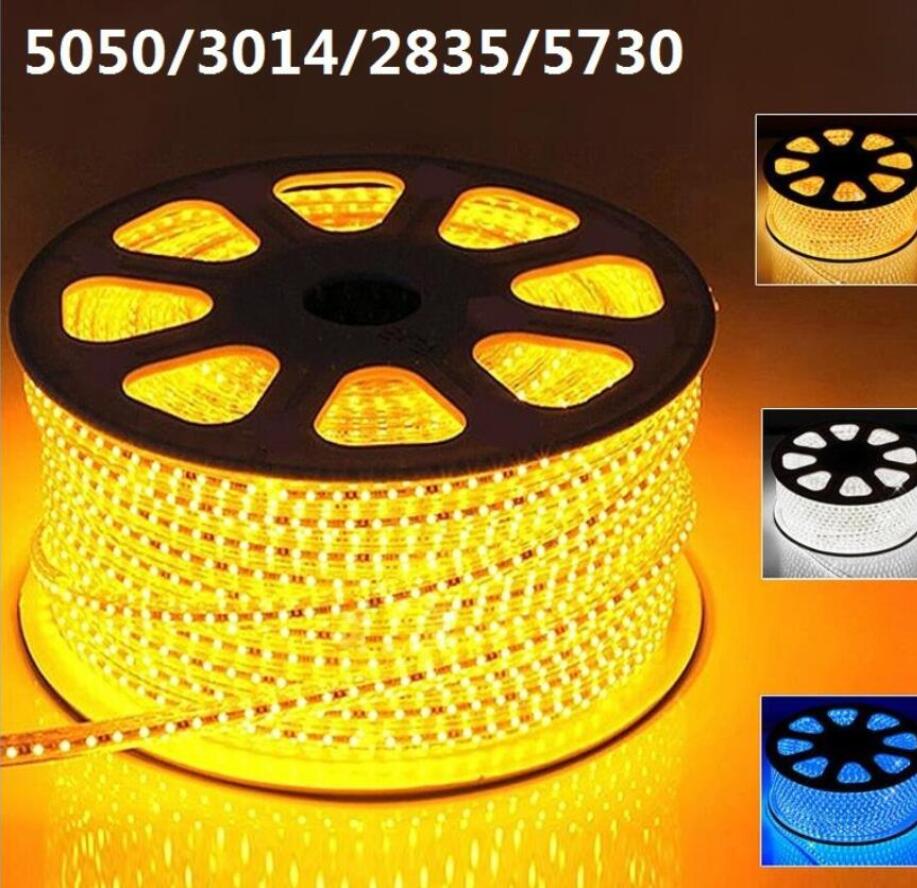

High Voltage 110V/220V LED Rope Strip


POWER: 7.2W/PCS,14W/PCS

Voltage: AC220V/AC110V

Size: 1000mm x 8mm/10mm/15mm/18mm/20mm/24mm

LED Qty/m:60LEDs,120LEDs,156LEDs,180LEDs,240LEDs

IP Grade:IP68 waterproof

LED Type: Samsung SMD2835/SMD5050/SMD5630

Total Lumen:  1200LM/M(for 60leds/m)

Emitting Colour: W. WW  R, B, G, Y, P,RGB

Colour Rendering Index: RA85

Life Span:  50000H

Certification:CE,ROHS,UL

Product Description

Product Specification
● Model:GN-GYR001
● LED Type
:SMD2835/SMD5050/SMD5630
● Chip Brand:Samsung
● Power:12w/m(for 60leds/m)
● Work Voltage:AC220V/AC110V
● Waterproof Rate:IP68
● Size:8mm/10mm15mm/18mm/20mm/24mm width pcb
● Lumen:1200lm/m(for 60leds/m)
● LED Quantity:60leds/m,120leds/m,156leds/m,180leds/m,240leds/m
● Color for choice:White,Warm White,Red,Blue,Green,Yellow,Pink,RGB
● Material
:Unti-heat/burning PVC
● Cuttable length: Each 1m cuttable
● Quantity/Roll
:100meters/roll

● Weight:13kg/roll
● Work Temperature:-40-70 degree
● Warranty:5 years

Features
● Sourced by high output Samsung LED with good color conformity.
● 99.99% gold thread, pure copper bracket coated with silver.
● Solid-state for high vibration resistance and good flexibility for any shape.
   360 degree bendable,no breakage during assembly or shipping or installation.
● IP68 waterproof, ok for indoor or outdoor use
● AC220V/110V voltage, can directly be used with a power cord without extra adapter or power supply.
● Max series length can be 100 meters, and can be cut or connected by every one meter.
● PVC tube pipe provides good waterproof performance and can be used both indoor or outdoor.
● CE, RoHS and UL certified
.







Accessory&Install Method





Application
● Architectural decoration,archway,canopy and bridge lighting
● Amusement park, theater and aircraft cabin mood lighting
