Home > Products > LED Strip Light > LED Neon Light
Neon LED Flex Light
-Inside SMD2835 120leds/m
-Size:DC12V/24V:W6*H12mm W8*H16mm
AC110V/220V::W10XH20mm
AC110V/220V::W10XH20mm
-DC12V/DC24V/AC110V/AC220V available,12v and 24v can be cut at each 1cm or 2.5cm,110v/220v cut at each 50cm
-Color can be White/Warm White/Red/Green/Blue/Lemon Yellow/Golden Yellow/Orange/Ice Blue/Pink/Light Pink/Purple/RGB/Digital RGB
-IP68 waterproof,indoor/outdoor use
-Unti-heat/burning Silicion housing, can be bendable 360 degree to any shape,use in -40-70 degree
-50m/roll,weight 6KG
-Application:Building decoration,Neon sign letters,different pattern design making etc
-Colour Rendering Index: RA85
-Life Span: 50000H
Product Description

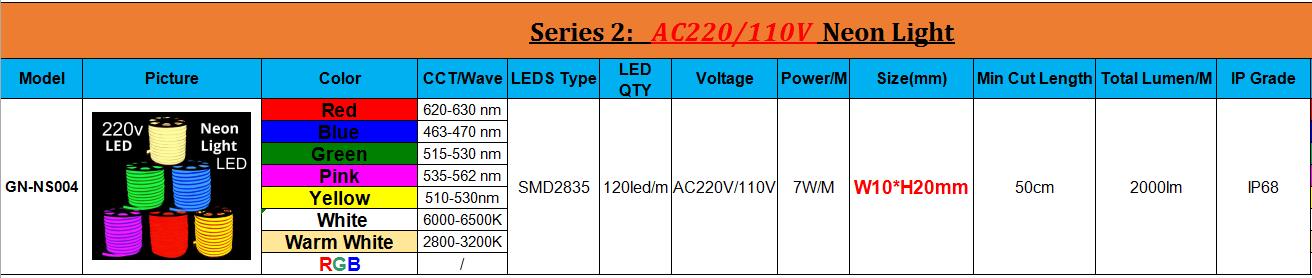

Product Specification
● Model:GN-NS001/GN-NS002/GN-NS003/GN-NS004
● LED Type:SMD2835
● Chip Brand:Samsung
● Power:10w/m
● Work Voltage:DC12V/DC24V.AC110V/AC220V
● Waterproof Rate:IP68
● Size:W6*H12mm,W8*H16mm,W10*20mm
● Lumen:2000lm/m
● LED Quantity:120leds/m
● Color for choice:White,Warm White,Red,Blue,Green,Lemon Yellow,Golden Yellow,Orange,Ice Blue,Pink,Purple,Rose Red,RGB,Digital RGB
● Material:Unti-heat/burning silicone
● Cuttable length: 2.5cm for DC12/DC24V,50cm for AC110V/AC220V
● Quantity/Roll:50meters/roll
● Weight:6kg/roll
● Work Temperature:-40-70 degree
● Warranty:5 years
![](/pic/other/2019-03-29-19-54-300.jpg)
![](/pic/other/2019-03-29-19-55-264.jpg)
![](/pic/other/2019-03-29-19-55-523.jpg)
Size Drawing:
![](/pic/other/2019-03-29-20-32-249.jpg)
![](/pic/other/2019-03-29-20-32-337.jpg)
![](/pic/other/2019-03-29-20-32-426.jpg)

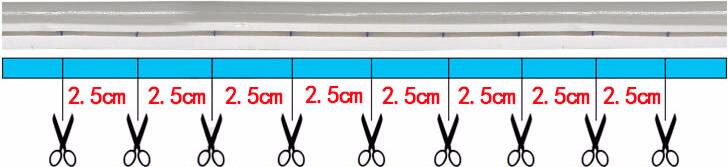

Min Cut Length:
![](/pic/other/2019-03-29-20-34-011.jpg)
![](/pic/other/2019-03-29-20-36-238.jpg)
Features
● Sourced by high output SMD2835 LED with good color conformity.
● 99.99% gold thread, pure copper bracket coated with silver.
● 360 degree bendable,no breakage during assembly or shipping or installation.
● IP68 waterproof, ok for indoor or outdoor use
● Perfect replacement for traditional glass neon,more durable,brightness and less power consumption
● Cut be cuttable at minimum size 1cm or 2.5cm
● CE, RoHS and UL certified.
![](/pic/other/2019-03-29-19-59-367.jpg)
![](/pic/other/2019-03-29-20-00-580.jpg)
![](/pic/other/2019-03-29-20-13-411.jpg)
![](/pic/other/2019-03-29-20-12-449.jpg)
![](/pic/other/2019-03-29-20-16-047.jpg)
![](/pic/other/2019-03-29-20-17-103.jpg)
![](/pic/other/2019-03-29-20-19-423.jpg)
![](/pic/other/2019-03-29-20-19-553.jpg)
![](/pic/other/2019-03-29-20-20-070.jpg)
![](/pic/other/2019-03-29-20-20-236.jpg)
![](/pic/other/2019-03-29-20-21-570.jpg)
![](/pic/other/2019-03-29-20-22-149.jpg)
![](/pic/other/2019-03-29-20-22-429.jpg)
![](/pic/other/2019-03-29-20-23-045.jpg)
DC12V/DC24V Accessory
End Cap(To make the ends better waterproof protection after cut):
![](/pic/other/2019-03-29-20-47-163.jpg)
Clip(To fix the neon strip to the installation place):
![](/pic/other/2019-03-29-20-26-546.jpg)
Transparent Cable(After cut for soldering to connect to the power supply)
![](/pic/other/2019-03-29-20-29-325.jpg)
Glue(For Neon Sign making only):
![](/pic/other/2019-03-29-21-08-036.jpg)
AC110V/AC220V Accessory:
![](/pic/other/2019-03-29-20-31-315.jpg)
Installation:
![](/pic/other/2019-03-29-20-38-558.jpg)
Application
● Building or shop decoration, neon sign letter, neon shape design making etc
![](/pic/other/2019-03-29-20-56-414.jpg)
![](/pic/other/2019-03-29-20-57-003.jpg)
![](/pic/other/2019-03-29-20-50-253.jpg)
![](/pic/other/2019-03-29-20-50-460.jpg)
![](/pic/other/2019-03-29-20-41-423.jpg)
![](/pic/other/2019-03-29-20-42-140.jpg)
