RGB Amplifier
Product Description
Product Details:
RGB amplifier applies to all the voltage-controlled LED controller in our company,it can
receives PMW(Pulse Width ,odulation),each time add one RGB amplifier,the connecting number
of led will be more than twice,in theory,numerous RGB amplifiers can be connected.
RGB amplifier applies to all the voltage-controlled LED controller in our company,it can
receives PMW(Pulse Width ,odulation),each time add one RGB amplifier,the connecting number
of led will be more than twice,in theory,numerous RGB amplifiers can be connected.
1. The RGB amplifier applies to the voltage-controlled LED controller; it can receive PWM (Pulse Width Modulation).
2. Each time add one RGB amplifier, the connecting number of LEDs will be more than twice.

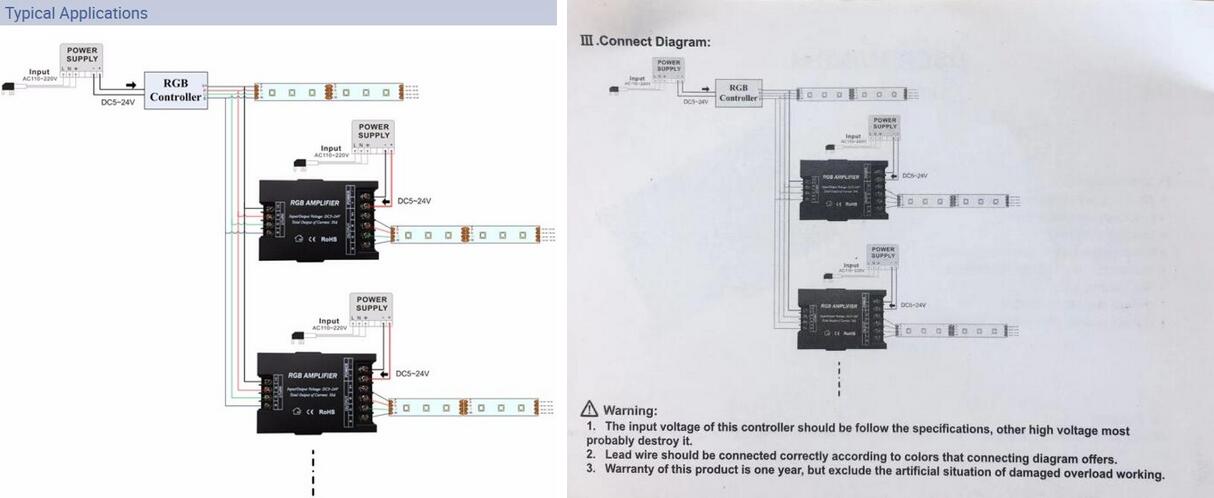

3. Receive RGB signal from LED controller and send the signal to another group of LED source

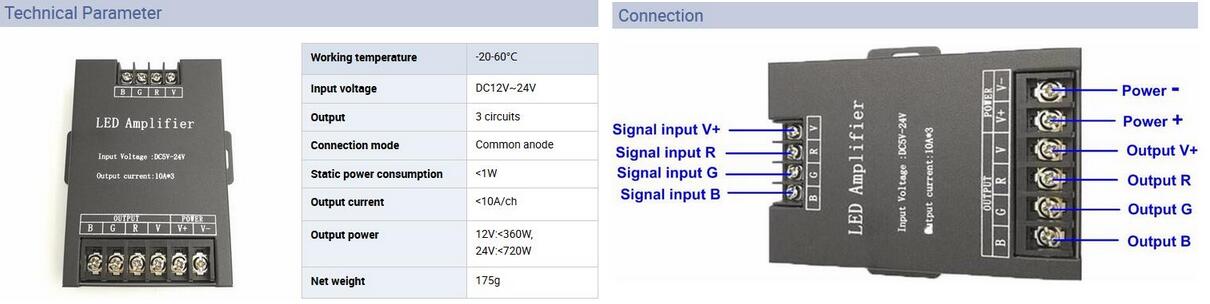

4. Output to RGB three channels, each channel max current of 8A
5. Maximum Load Power: 5V/150W, 12V/360W, 24V/720W
