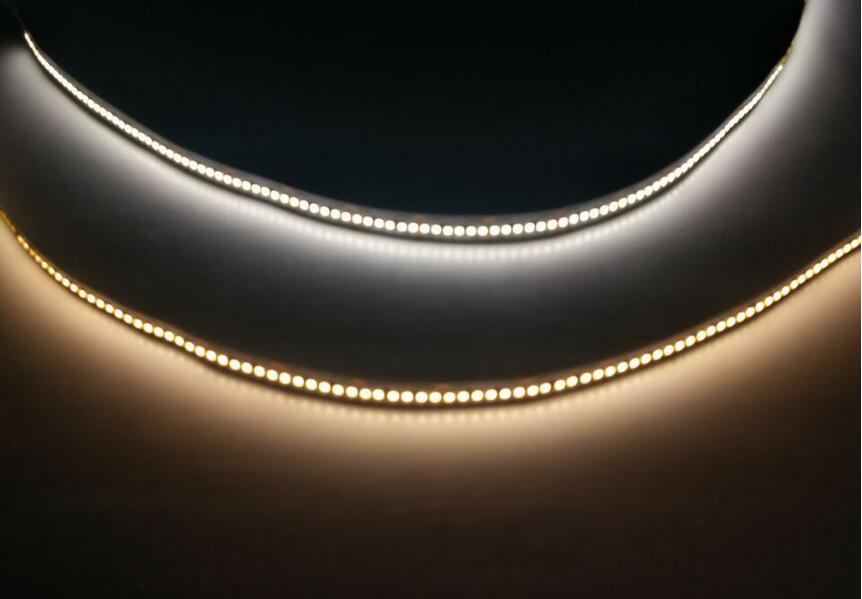

SMD2216 LED Flexible Strip


POWER: 12W/PCS

Voltage: DC12V/24V

Size: 1000mm x 10mm

LED Qty/m:120LEDs,180LEDs,240LEDs,300LEDs,360LEDs

IP:IP33/IP65/IP67/IP68

LED Type: Samsung SMD2216

Total Lumen:  1800LM/M(120LEDS/M)

Emitting Colour: W. WW  R, B, G, Y, P

Colour Rendering Index: RA90

Life Span:  50000H

Certification:CE,ROHS,UL

Can print any logo on module if needs

Product Description


Product Specification
● Model:GN-F2216
● LED Type
:SMD2216
● Chip Brand:Samsung
● Power:12w/m
● Work Voltage:DC12V/24V
● Waterproof Rate:IP33/IP65/IP67/IP68
● Size:L1000*W10mm
● Lumen:1800lm/m(For 120LEDs/m)
● LED Quantity:120leds,180leds,240leds,300leds,360leds/m
● Color for choice:Cool White,Pure White,Warm White,Red,Blue,Green,Yellow,Pink
● Material
:2oz double FPC PCB
● Beam Angel:120 Degree
● Quantity/Roll
:5 meters

● Weight:0.4kg/roll
● Work Temperature:-40-70 degree
● Warranty:5 years

Features
● Sourced by high output 2216 LED with good color conformity, and can put much more leds/m than other leds.max 360leds/m
● 99.99% gold thread, pure copper bracket coated with silver.
● USA Intematix phosphor with CRI>90.
● SDCM≤5 each BIN.
● Double layer rolled copper FPC.
● 3M 300LSE tape attached.
● CE, RoHS and UL certified


Application

Cabinet Lighting,home lighting and other place that requires more leds/m and high CRI requirement.
