Side Edge LED Rigid Bar for Light Box


Voltage: DC12V/DC24V

Size: 1000mm x 25mm

LED Qty/Meter:18LEDs/Meter

Beam Angle:15x60º

IP Grade:IP33/IP65

LED Type:Osram 3535

Total Lumen:3000lm/meter

Emitting Colour:Cool White,Pure White,Warm White,4000K,Red,Ble,Green,Pink,Yellow,RGB etc

Colour Rendering Index: RA85

Life Span:50000 Hours


Length can be customized with any required size, each 1leds cuttable

Can print any logo on pcb if needs

Product Description

Product Specification
● Model:GN-LB3535
● LED Type
● Chip Brand:Osram
● Power:18w/meter
● Work Voltage:DC12V/DC24V
● Waterproof Rate:IP33/IP65
● Size:L1000*W25mm*H1.4mm
● Lumen:3000lm/meter
● LED Quantity:18leds/pcs(each led cuttable)
● Color for choice:Cool White,Pure White,Warm White,Red,Blue,Green,Yellow,Pink,RGB
● Material
:4oz copper aluminum pcb
● Beam Angel:15x60º
● Weight:16kg/100meters
● Work Temperature:-40-70 degree
● Warranty:5 years

● With optical lens, wider light beam angle 15x60 degree,no dark point,no light spot,the light is well distributed.
● Sourced by high output 3535 LED with good color conformity,
SDCM≤5 each BIN.
● 99.99% gold thread, pure copper bracket coated with silver.
● USA Intematix phosphor with CRI>85.
● Any rerquired length can be customized, each 1leds cuttable
● CE, RoHS and UL certified

More Details

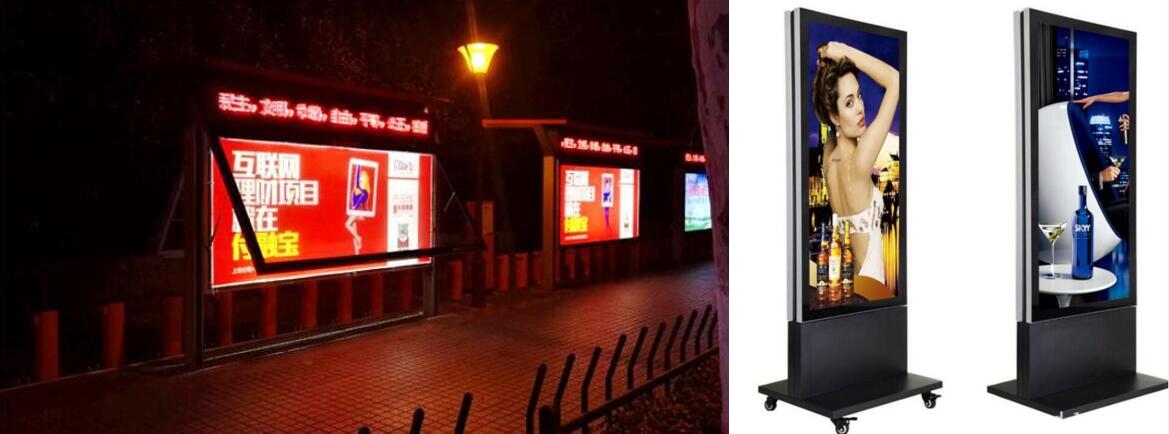

●  Use for 10-80CM thickness single or double side light box, width up to 5meter light box
