Mini Small LED Module
Wattage: 0.6W/PCS
Voltage: DC12V
Size: 18mm x9mm
IP Grade: IP68 Waterproof
LED Type: Samsung SMD3014
Total Lumen: 80LM/PCS
Emitting Colour: W,WW,R, B, G, Y, P
Colour Rendering Index: RA85
Beam Angle: 120°
Lifespan: 50000 Hours
Can print any logo on module if needs
Product Description
Product Specification
● Model:GN-MN3035
● LED Type:SMD3014
● Chip Brand:Samsung
● Power:0.6w/pcs
● Work Voltage:DC12V
● Waterproof Rate:IP68
● Size:L18*W9*H2.5mm
● Lumen:80lm/pcs
● LED Quantity:3leds/pcs
● Lighting Color:Cool White,Pure White,Warm White,Red,Blue,Green,Yellow,Pink
● Material:ABS housing+Aluminum PCB
● Beam Angel:120°
● Module Quantity/String:20pcs/string
● Weight:0.3kg/100pcs
● Work Temperature:-40-70℃
● Warranty:5 years
Features
● Mini size design,well used in tiny thin place or small channel letter corner.
● Sourced by high output SMD3014;SDCM≤5 each BIN,good color conformity and no spot.
● 99.99% gold thread,pure copper bracket coated with silver.
● Over moulded design:anti-dusting, anti-moisture, waterproof, anti-shock.
● Ra>85,50,000 hours lifespan.
● 20pcs/string,200pcs max in a series connection.

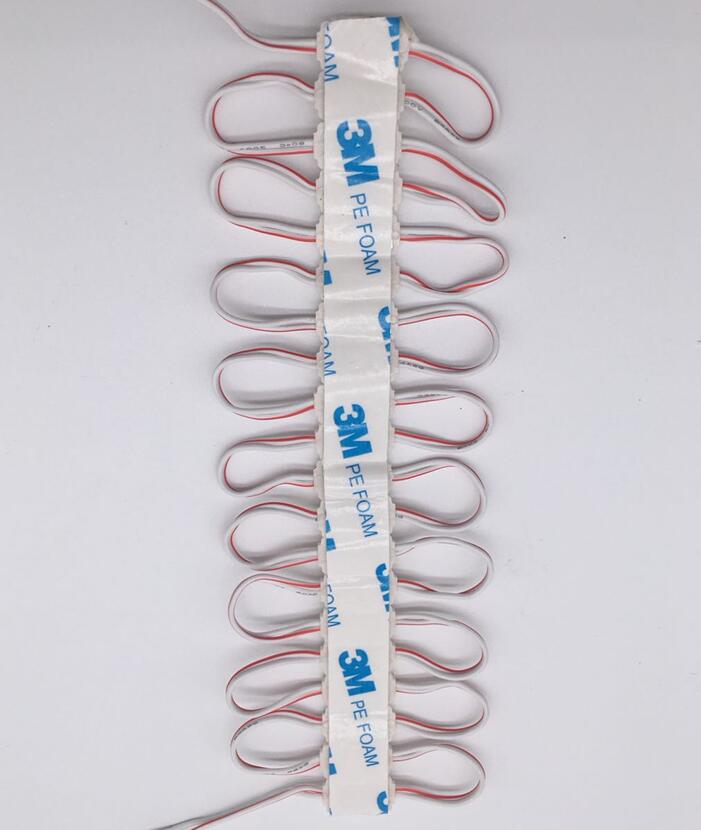

● High quaity 3M tape adhesive at back,with screw holes,easy to install and fix.
● CE, ROHS and UL certified.
Application
● Best for 4-50cm depth illuminate channel letter or light box at airports,metros,banks,buildings and shopping malls etc.
● Channel letter light,led signage lighting source and other lighting project.
● Model:GN-MN3035
● LED Type:SMD3014
● Chip Brand:Samsung
● Power:0.6w/pcs
● Work Voltage:DC12V
● Waterproof Rate:IP68
● Size:L18*W9*H2.5mm
● Lumen:80lm/pcs
● LED Quantity:3leds/pcs
● Lighting Color:Cool White,Pure White,Warm White,Red,Blue,Green,Yellow,Pink
● Material:ABS housing+Aluminum PCB
● Beam Angel:120°
● Module Quantity/String:20pcs/string
● Weight:0.3kg/100pcs
● Work Temperature:-40-70℃
● Warranty:5 years
Features
● Mini size design,well used in tiny thin place or small channel letter corner.
● Sourced by high output SMD3014;SDCM≤5 each BIN,good color conformity and no spot.
● 99.99% gold thread,pure copper bracket coated with silver.
● Over moulded design:anti-dusting, anti-moisture, waterproof, anti-shock.
● Ra>85,50,000 hours lifespan.
● 20pcs/string,200pcs max in a series connection.
● High quaity 3M tape adhesive at back,with screw holes,easy to install and fix.
● CE, ROHS and UL certified.
Application
● Best for 4-50cm depth illuminate channel letter or light box at airports,metros,banks,buildings and shopping malls etc.
● Channel letter light,led signage lighting source and other lighting project.
