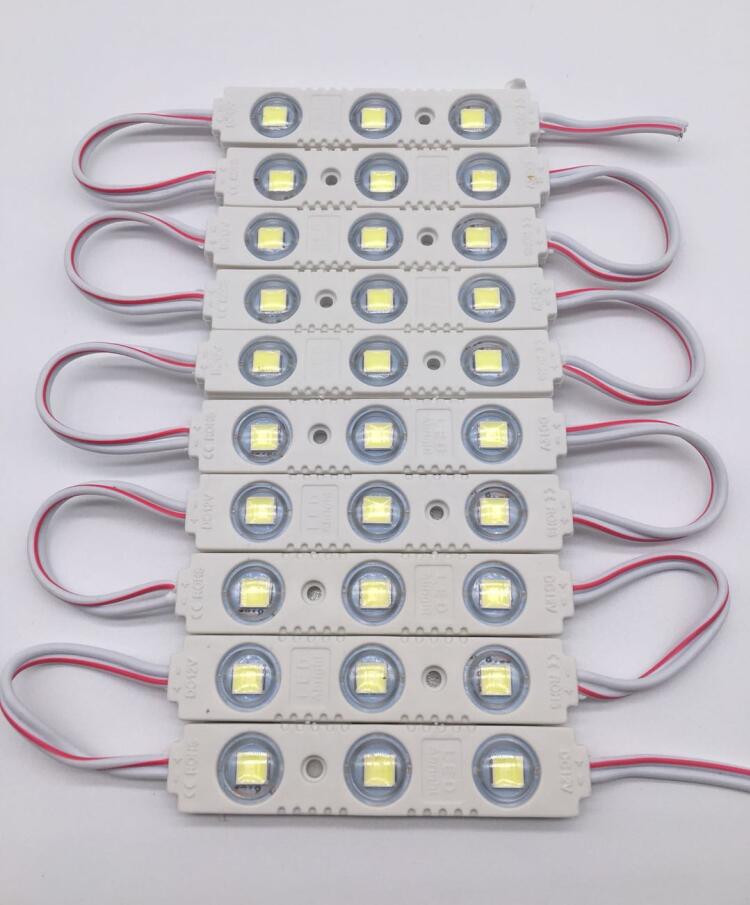

5050 LED Module
Wattage: 0.72W/PCS
Voltage: DC12V
Size: 70mm x 15mm
IP Grade:IP68 waterproof
LED Type: Samsung SMD5050
Total Lumen: 200LM/PCS
Emitting Colour: W,WW,R, B, G, Y, P
Colour Rendering Index: RA85
Beam Angle: 160°
Lifespan: 50000 Hours
Can print any logo on module if needs
Product Description
Product Specification
● Model:GN-G5035L3
● LED Type:SMD5050
● Chip Brand:Samsung
● Power:0.72w/pcs
● Work Voltage:DC12V
● Waterproof Rate:IP68
● Size:L70*W15*H5mm
● Lumen:200lm/pcs
● LED Quantity:3leds/pcs
● Lighting:Cool White,Pure White,Warm White,Red,Blue,Green,Yellow,Pink
● Material:ABS housing+Aluminum PCB+Optical Lens
● Beam Angel:160°
● Module Quantity/String:20pcs/string
● Weight:0.8kg/100pcs
● Work Temperature:-40-70℃
● Warranty:5 years
Features
● Sourced by high output SMD5050 chip,good color conformity and no spot.
● 99.99% gold thread,pure copper bracket coated with silver.
● Constant current driving technology guarantees the stable performance for this product.
● SDCM≤5 each BIN.
● Special lens design,160° beaming angle with well-distributed light.
● Over moulded design:anti-dusting,anti-moisture,waterproof,anti-shock.
● Ra>85,50,000 hours lifespan.
● 20pcs/string,200pcs max in a series connection.
● High quaity 3M tape adhesive at back,with screw holes,easy to install and fix.
● CE,ROHS and UL certified.
Application
● Best for 4-80cm depth illuminate channel letter or light box at airports,metros,banks,buildings and shopping malls etc.
● Channel letter light,led signage lighting source and other lighting project.
