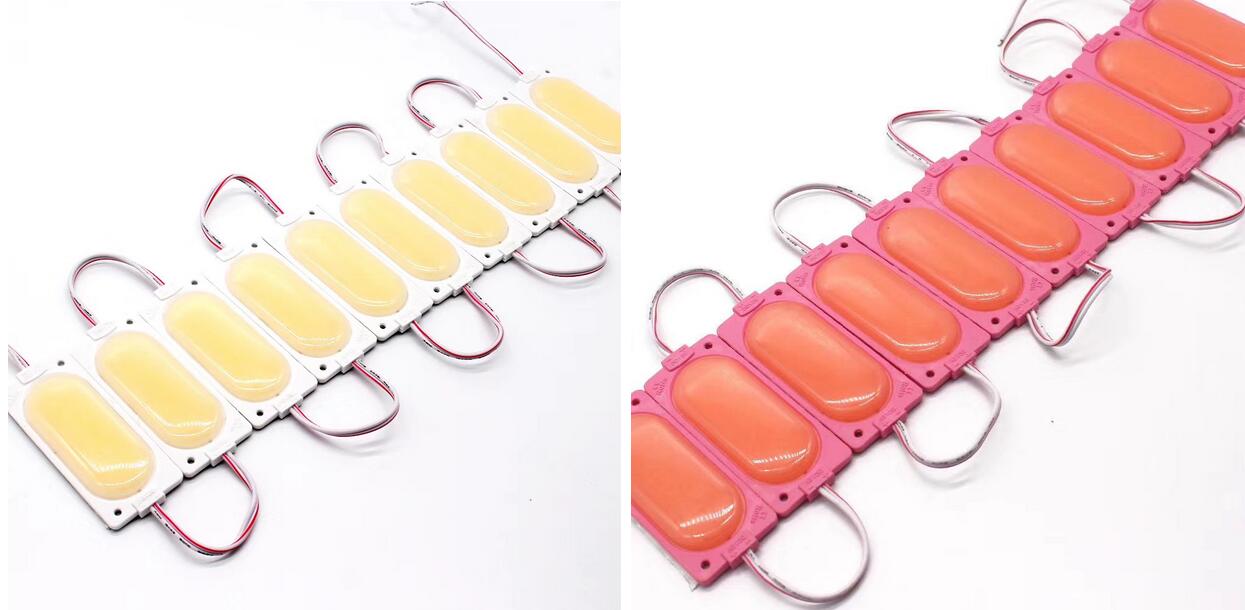

Rainbow Multi-Color COB LED Module

Home > Products > LED Signage Light > LED Module

Rainbow Multi-Color COB LED Module

Power: 3W/PCS

Voltage: DC12V

Size: 85mm x 35mm

IP: IP68 waterproof

LED Type: COB 3535

Total Lumen: 360LM/PCS

Emitting Colour: W, WW, R, B, G, Y, P

Colour Rendering Index: RA85

Beam Angle: 160°

Life Span: 50000 Hours

Certification: CE,ROHS,UL

Can print any logo on module if needs

Product Description

Product Specification
● Model:GN-C4015
● LED Type:COB3535
● Chip Brand:Cree
● Power:3w/pcs
● Work Voltage:DC12V
● Waterproof Rate:IP68
● Size:L85*W35*H4mm
● Lumen:360lm/pcs
● LED Quantity:12leds/pcs
● Color for choice:Cool White,Pure White,Warm White,Red,Blue,Green,Yellow,Pink
● Material:ABS housing+Aluminum PCB+Optical Lens
● Beam Angel:160°
● Module Quantity/String:20pcs/string
● Weight:1.7kg/100pcs
● Work Temperature:-40-70 degree
● Warranty:5 years

Features
● Multi-color for option, and beautiful package in plastic box.
● Ultrasonic designing for house, good heat sink and waterproof rate.
● Sourced by high output COB 3535;SDCM≤5 each BIN,good color conformity and no spot.
● 99.99% gold thread, pure copper bracket coated with silver.
● Constant current driving technology guarantees stable performance of product.
● Special lens design, 160°beaming angle with even light.
● Overmoulded: anti-dusting, anti-moisture, waterproof, anti-shock.
● Ra>85,50,000 hours lifespan
● 20pcs/string. 200pcs max in a series connection.
● High quality 3M tape adhesive at back, with screw holes,easy to install and fix.
● CE, ROHS and UL certified.

Application
● Best for 4-80 cm depth illuminate letter or light box at airports, metros, banks, buildings and shopping malls,etc
● Channel Letter light.led signage lighting source and other lighting project
