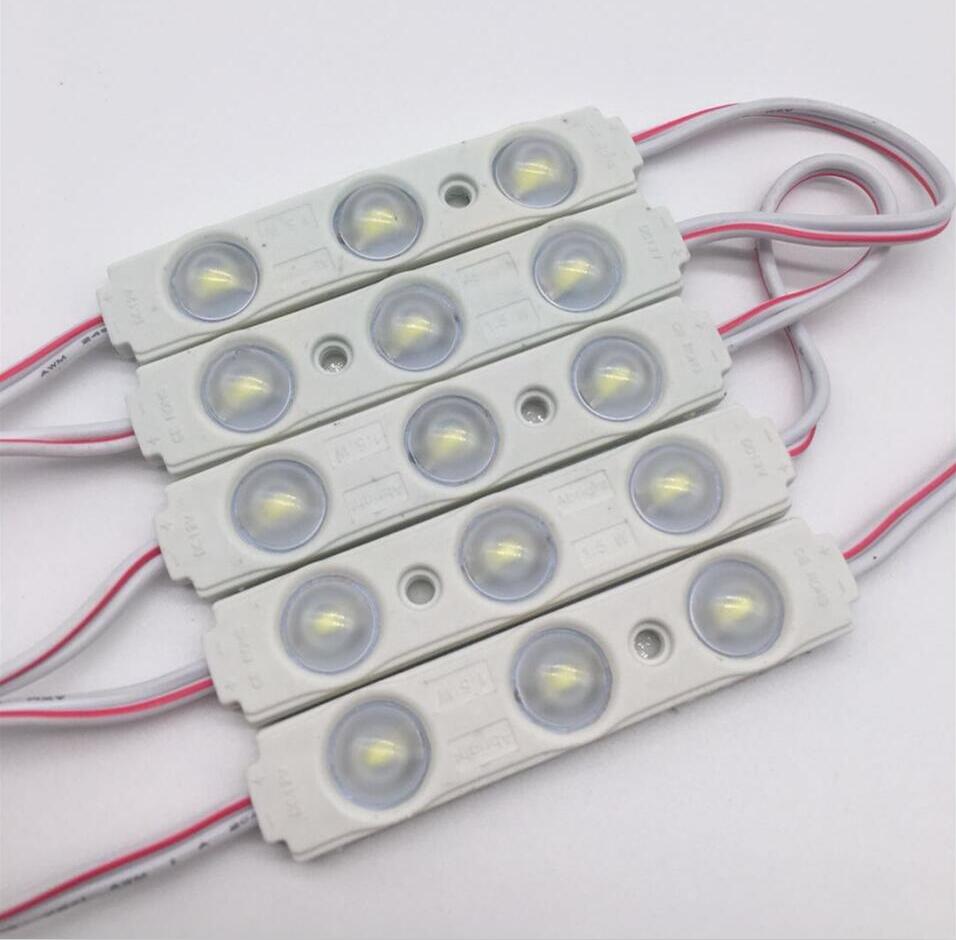

Samsung 5630 LED Module

Voltage: DC12V

Wattage: 1.5W/PCS

Total Lumen: 225LM/PCS

LED Type: Samsung SMD5630

LED Quantity/PCS: 3LEDs/PCS

Size: 72mm x 15mm

IP: IP68 Waterproof

Emitting Colour:Cool White,Pure White,Warm White,4000K,Red,Blue,Green,Pink,Yellow etc.

Colour Rendering Index: RA85

Beam Angle: 160°

Life Span: 50000 Hours

Certification: CE,ROHS,UL

Can print any logo on module if needs

Product Description

Product Specification
● Model:GN-G6035L2
● LED Type:SMD5630
● Chip Brand:Samsung
● Power:1.5w/pcs
● Work Voltage:DC12V
● Waterproof Rate:IP68
● Size:L72*W15*H6.8mm
● Lumen:225lm/pcs
● LED Quantity:3leds/pcs
● Lighting Color:Cool White,Pure White,Warm White,Red,Blue,Green,Yellow,Pink
● Material:ABS housing+Aluminum PCB+Optical Lens
● Beam Angel:160°
● Module Quantity/String:20pcs/string
● Weight:0.75kg/100pcs
● Work Temperature:-40-70 degree
● Warranty:5 years

Features
● Ultrasonic designing for house, good heat sink and waterproof rate.
● Sourced by high output SMD5630;SDCM≤5 each BIN,good color conformity and no spot.
● 99.99% gold thread, pure copper bracket coated with silver.
● Constant current driving technology guarantees stable performance of product.
● Special lens design, 160°beaming angle with well-distributed light.
● Over moulded design: anti-dusting, anti-moisture, waterproof, anti-shock.
● Ra>85, 50,000 hours lifespan
● 20pcs/String. 200 pcs max in a series connection.
● High quality 3M tape adhesive at back, with screw holes,easy to install and fix.
● CE, ROHS and UL certified.

Application
● Best for 4-80 cm depth illuminate channel letter or light box at airports, metros, banks, buildings and shopping malls etc.
● Channel letter light,led signage lighting source and other lighting project.
