Side View Edge LED Module

Wattage: 3W/PCS

Voltage: DC12V

Size: 70mm x 20mm

IP Grade: IP68 Waterproof

Beam Angle: 15x60º

LED Type: Osram 3535

Total Lumen: 350LM/PCS

Emitting Colour: W, WW, R, B, G, Y, P, RGB

Colour Rendering Index: RA85

Life Span: 50000 Hours

Certification: CE,ROHS,UL

Can print any logo on module if needs

Product Description

Product Specification
● Model:GN-H2015
● LED Type:3535
● Chip Brand:Osram
● Power:3w/pcs
● Work Voltage:DC12V
● Waterproof Rate:IP68
● Size:L70*W20*H4.5mm
● Lumen:350lm/pcs
● Beam Angle:15x60º
● LED Quantity:3leds/pcs
● Lighting Color:Cool White,Pure White,Warm White,Red,Blue,Green,Yellow,Pink,RGB
● Material:ABS housing+Aluminum PCB+Optical Lens
● Module Quantity/String:20pcs/string
● Weight:1.8kg/100pcs
● Work Temperature:-40-70 degree
● Warranty:5 years

Features
● Sourced by high output Osram 3535;SDCM≤5 each BIN,good color conformity and no spot.
● 99.99% gold thread, pure copper bracket coated with silver.
● Constant current driving technology guarantees stable performance of this product.
● Special lens design,15x60°beaming angle with well-distributed light.
● Over moulded design:anti-dusting,anti-moisture,waterproof,anti-shock.
● Ra>85,50,000 hours lifespan
● 20pcs/string.200pcs max in a series connection.
● High quaity 3M tape adhesive at back, with screw holes,easy to install and fix.
● CE,ROHS and UL certified.

Application

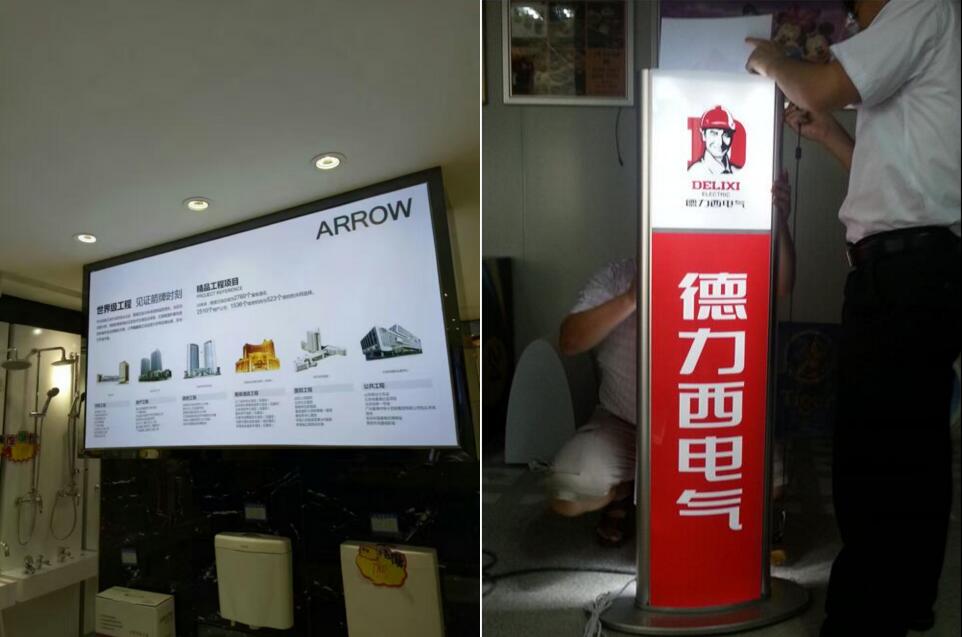

●Best for 10-120cm depth single or double-sided light box at airports,metros,banks,buildings and shopping malls etc.
