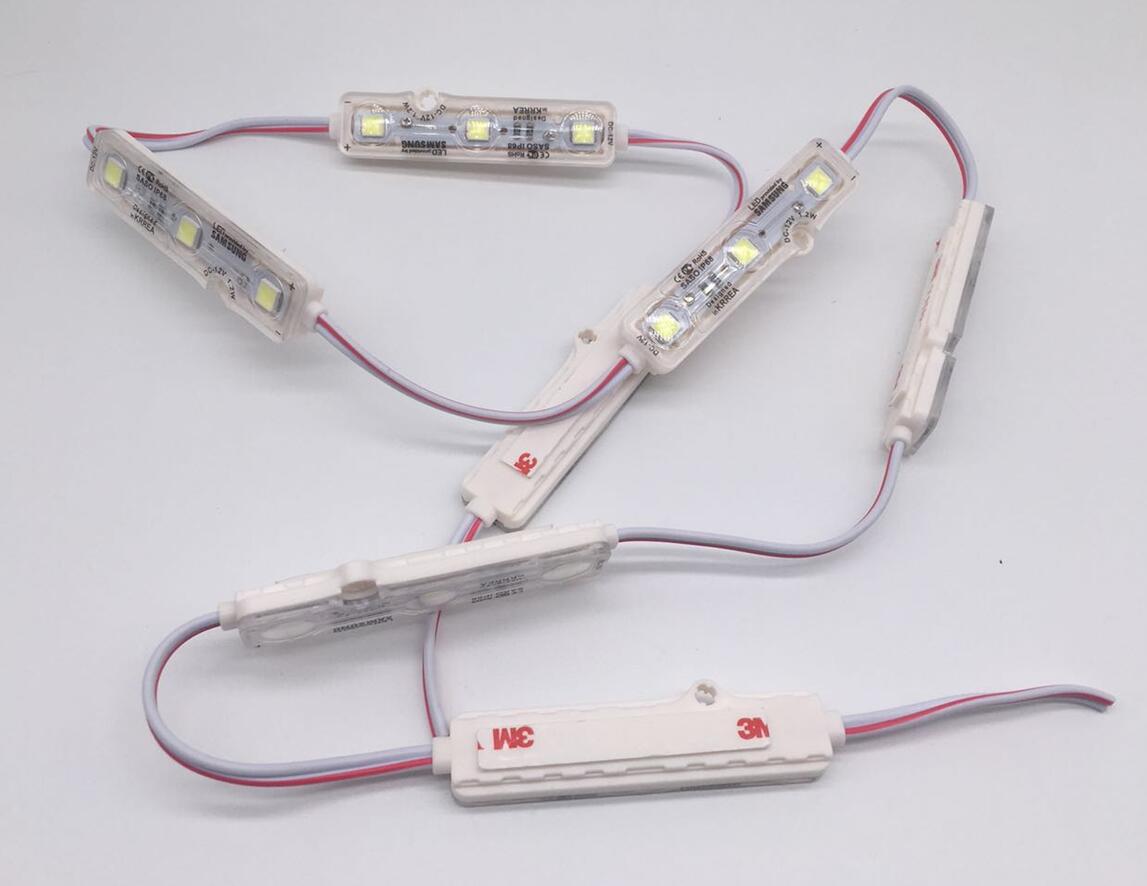

Samsung 5050 LED Module

Home > Products > LED Signage Light > LED Module

Samsung 5050 LED Module

Wattage: 0.72W/PCS

Voltage: DC12V

Size: 65mm x 15mm

IP Grade: IP68 Waterproof

LED Type: Samsung SMD5050

Total Lumen: 200LM/PCS

Emitting Colour: W,WW,R,B,G,Y,P

Colour Rendering Index: RA85

Beam Angle: 160°

Life Span: 50000 Hours

Certification:CE,ROHS,UL

Can print any logo on module if needs

Product Description

Product Specification
● Model:GN-G5035L1
● LED Type:SMD5050
● Chip Brand:Samsung
● Power:0.72w/pcs
● Work Voltage:DC12V
● Waterproof Rate:IP68
● Size:L65*W15*H6.8mm
● Lumen:200lm/pcs
● LED Quantity:3leds/pcs
● Lighting Color:Cool White,Pure White,Warm White,Red,Blue,Green,Yellow,Pink
● Material:ABS housing+Aluminum PCB+Optical Lens
● Beam Angel:160°
● Module Quantity/String:50pcs/string
● Weight:0.9kg/100pcs
● Work Temperature:-40-70 degree
● Warranty:5 years

Features
● Ultrasonic designing for house,good heat sink and waterproof rate.
● Sourced by high output SMD5050;SDCM≤5 each BIN,good color conformity and no spot.
● 99.99% gold thread, pure copper bracket coated with silver.
● Constant current driving technology guarantees stable performance of this product.
● Special lens design,160°beaming angle with well-distributed light.
● Over moulded design:anti-dusting,anti-moisture,waterproof,anti-shock.
● Ra>85,50,000 hours lifespan.
● 50pcs/string.200pcs max in a series connection.
● High quaity 3M tape adhesive at back,with screw holes,easy to install and fix.
● CE,ROHS and UL certified.

Application
● Best for 4-80 cm depth illuminate channel letter or light box at airports,metros,banks,buildings and shopping malls etc.
● Channel letter light,led signage lighting source and other lighting project.
